In this area, we initially give an in-depth summary of the dataset and also the speculative atmosphere. After that we give the 2-, 4-, 35-classifier outcomes of 347-dim network web traffic functions and also BIR-CNN compared to various other attribute removal approaches and also ML designs. Finally, we give the 2-, 4-, 35-classifier outcomes of BIR-CNN design which is compared to various other ML designs based upon our recommended network web traffic functions.

### Speculative atmosphere

The operating and also screening atmosphere of the BIR-CNN design is Intel (R) i7-11,700 CPU, 32 GB memory, GeForce RTX™ 3090 Ti GPU, based upon Windows10 os. The experiments are performed on the CICAndMal2017 dataset^{22}. The actions for refining each example have actually been defined in Area dataset attribute removal. The malware households with less than 9 examples are gotten rid of to guarantee sensible splitting of dataset right into training, recognition, and also examination collections. Lastly, 2071 examples are offered, and also the dimension of the information was around 30 GB. Educating collections are made use of for discovering, which included suitable the specifications (i.e., weights) of a classifier. Recognition collections are made use of to tune the specifications (i.e., style, not weights) of a classifier; as an example, to select the variety of concealed devices in a semantic network. Examination collections are made use of just to examine the efficiency (generalization) of a completely defined classifier. In our experiments, the ten-fold cross recognition is embraced to educate and also evaluate the design.

To review the efficiency of 347-dim network web traffic functions and also BIR-CNN design, the speculative outcomes are compared to referrals^{23,25,28,29,30}, which made use of various attribute removals and also ML designs. Based upon the 347-dim network web traffic functions, to more review the efficiency of the BIR-CNN design, the speculative outcomes of BIR-CNN are compared to the outcomes of the typical ML design, specifically (SVM—Assistance Vector Maker, DT—Choice Tree and also RF—Random Woodland), and also with the typical CNN design without set normalization and also inception-residual.

The BIR-CNN design contains convolution layers, set normalization, and also inception-residual and also faster way link components. The bit dimension is (3 times 3,) and also the variety of out networks in the 4 panels are 32, 64, 128, and also 32; set normalization specifications are established as 32, 64, 128, and also 32. Beginning and also faster way link components need (mathrm{F}(mathrm{x}) +mathrm{ x}); hence, the specifications are established the like those for the top layer. Ultimately, the totally linked layer is identified, where the failure is established with an arbitrary deactivation possibility of 0.5, and also GAF is made use of as the activation feature. The discovering price of 2-classifier is 0.001 and also the L2 regularization term is 1.3e-2. The discovering price of 4-classifier is 0.00022 and also the L2 regularization regard to 2.588e-3. The discovering price of 35-classifier is 0.001 and also the L2 regularization term is 0. At the same time, 2-, 4-classifier sets are 128 and also 35-classifier set is 256. The in-depth specifications of BIR-CNN design are displayed in Table 2.

### Information clean-up

Before information training, the dataset is cleaned up utilizing the regular circulation three-way concept to get rid of outliers. The SMOTE formula, which is an artificial minority oversampling method, is after that made use of to resolve the issue of irregular information circulation.

The 3*σ* concepts of the regular circulation are as complies with:

$$Pleft( {mu – 3sigma } right) < X le left( {mu – 3sigma } right) = 99.7% .$$

(17)

#### SMOTE formula

A handful of group examples are evaluated and also substitute, and also brand-new by hand substitute examples are contributed to the dataset, hence making the groups in the initial information no more seriously unbalanced. The simulation procedure of this formula makes use of the KNN method, and also the actions to imitate the generation of brand-new examples are as complies with: (1) Tasting nearby next-door neighbor formula to compute *K* nearby next-door neighbors for each and every minority course example. (2) Arbitrarily pick N examples from the KNN formula for arbitrary straight interpolation. (3) Build brand-new minority course examples. (4) Manufacture the brand-new examples with the initial information to produce a brand-new training collection.

### Speculative outcomes

In this component of the experiments, we contrast the efficiency of the 347-dim network web traffic functions and also BIR-CNN design with various other advanced approaches in the literary works. It deserves discussing that these approaches made use of the CICAndMal2017 dataset. These 2-, 4-, 35-classifier outcomes are given in Tables 3, 4 and also 5. Referral^{23} established and also drawn out greater than 80 network web traffic includes to find and also identify the malware. Referral^{24} drawn out conversation-level network web traffic functions from the dataset can boost the discovery, classification, and also family members category of Android malware. Referral^{26} enhanced their malware group and also family members category efficiency by incorporating the previous vibrant functions (80 network-flows) with 2-g consecutive relationships of API calls. In referral^{27}, the raw web traffic is straight considered as information input, to make sure that the convolution semantic network design instantly discovers web traffic functions and also executes category. In referral^{28}, 8115 functions of the authorizations and also intent activities were gotten and also conserved in a CVS data. After that, the web traffic network photos include information are generated which is presented in method and also conserved as TFRecord data. The researches in^{23,24,26} made use of RF design and also in^{27,28} made use of deep discovering approaches for Android malware category. As displayed in Table 3, BIR-CNN design attain the highest possible precision of 0.99 and also accuracy of 0.99 in malware binary category. This deep discovering design with network web traffic functions reveals a far better efficiency than RF or various other deep discovering approaches with enhancements. In Table 4, BIR-CNN attains an accuracy of 0.99 for malware 4-classification. Various other researches^{23,24,26,28} accomplished the accuracy of 0.50, 0.80, 0.83, 0.98, specifically. In Table 5, BIR-CNN design attains an accuracy of 0.97 for malware 35-classification. Various other researches^{23,26,28} accomplished the accuracy of 0.28, 0.60, 0.73, specifically. certainly, the 35-classifier outcomes are dramatically enhanced by BIR-CNN design and also 347-dim network web traffic functions.

Based Upon the 347-dim network web traffic functions, the efficiency of BIR-CNN is compared to DT, RF, SVM and also CNN for 2-, 4-, 35- classifier. The greater the worths of precision, accuracy, recall, and also F1 rating, the far better the efficiency of the design. Table 6 reveals the 2-classifier efficiency of each ML design on the examination dataset. The outcomes disclose that the efficiency of the DL design transcends to that of the typical ML designs. Additionally, the general efficiency of the BIR-CNN design is far better than that of the typical CNN design. The BIR-CNN design carried out finest in the 4 examination indexes. As an example, the recall worth of the typical ML approaches and also CNN are low; although SVM can attain a recall worth of 0.89, the recall worth of the BIR-CNN design recommended in this paper is 0.99.

Table 7 offers the 4-classifier efficiencies of the BIR-CNN, CNN, SVM, DT, RF designs specifically on each group of destructive software application. Balancing the outcomes for the 4 groups, the BIR-CNN design attains the most effective recall (0.99) and also F1-score (0.99). As a matter of fact, for SVM, the recall worth is 0.86 and also the F1-score is 0.85; for RF, the recall and also F1-score are 0.87. Generally, the BIR-CNN design outmatches the various other 3 designs. Semantic networks, particularly CNN, are significantly being made use of in malware discovery and also category as a result of their benefits in handling raw information and also their capability to find out functions.

Table 8 offers the 35-classifier outcomes. The typical worths of the BIR-CNN design are a lot more than those of various other designs in the 4 examination indexes, which are practically 1.00. The typical recall of DT is just 0.81, which is 0.18 much less than that of the BIR-CNN design, and also its typical accuracy price is 0.81, which is additionally 0.18 much less than that of BIR-CNN. The typical precision, accuracy, recall, and also F1-score are around 0.84 of RF, SVM and also CNN. These examination requirements disclose that the 347-dim network web traffic functions and also BIR-CNN design recommended in this paper has a considerably premium efficiency for multi category.

The outcome circulations of the DT, RF, SVM, CNN, and also BIR-CNN designs mirror their efficiency much more with ease, which are highlighted in Fig. 4.

To reveal the efficiency of the BIR-CNN design in malware category in an extra instinctive way, Fig. 5 highlights the precision contours and also loss contours of BIR-CNN on the training, screening, and also recognition dataset. BIR-CNN attains an outstanding precision of 99.96%, 99.49%, and also 99.34% in training examples, recognition examples, and also screening examples, specifically, in binary category (2-classifier) (Fig. 5a); 99.98%, 98.95%, and also 99.37% in training examples, recognition examples, and also screening examples, specifically, in group classification (4-classifier) (Fig. 5c); and also 99.70%, 92.52%, and also 94.02% in training examples, recognition examples, and also screening examples, specifically, in destructive family members category (35-classifier) (Fig. 5e). These outcomes reveal that BIR-CNN executes well in 2-, 4-, and also 35-classifiers. The loss in binary category (2-classifier) is from 0.712427–0.008237 in the training example, 0.685336–0.014405 in the recognition example, and also 0.686690–0.015525 in the screening example (Fig. 5b). The loss in group classification (4-classifier) is 1.389648–0.004504 in the training example, 1.386036–0.031262 in the recognition example, and also 1.384183–0.020317 in the examination example (Fig. 5d). The loss in destructive family members category (35-classifier) is 3.594075–0.013753 in the training example, 3.541312–0.256138 in the recognition example, and also 3.543989–0.215694 in the examination example (Fig. 5f). It can be discovered from Fig. 4 that the 35-classifier executes efficiently after 150 cycles.

Number 6 reveals a contrast of CNN and also BIR-CNN in binary category (2-classifier), group classification (4-classifier), and also destructive family members category (35-classifier). There is a clear distinction in between the precision contours of CNN and also BIR-CNN in binary category and also multi-category. In binary classification (2-classifier), the precision of BIR-CNN was 0.489729–0.999574, whereas that of CNN was just 0.940947 after 250 cycles. BIR-CNN accomplished a precision of 0.999669, yet CNN accomplished a worth of 0.910228 in 4-classifier. In destructive family members category (35-classifier), BIR-CNN assembled after 200 cycles and also was ultimately able to get to 0.997460, yet the CNN assembled gradually and also was just able to get to 0.866390, suggesting that the recommended design executes well in regards to precision in binary category, and also both classifiers execute efficiently after 200 cycles.

The ROC contours and also public relations contours are highlighted in Fig. 6 to reveal the benefit of BIR-CNN. Number 7a reveals the ROC contours for the 5 designs. AUC describes the location under the ROC contour. The bigger the AUC, the much more reliable the classifier will certainly be. The AUC worth of BIR-CNN is 0.99, which is dramatically more than that of SVM, DT, RF, and also CNN. Contrasted to the AUC worth of SVM is 0.91, the AUC worth of BIR-CNN is 0.99. As a result, BIR-CNN will certainly end up being a useful device in the category of destructive software application or a minimum of corresponding to existing approaches. The public relations contours of 5 ML designs are displayed in Fig. 7b which highlight the partnership in between accuracy and also recall. The chart of accuracy and also recall contour is made use of to contrast the category efficiency. When the void in between favorable and also unfavorable examples is not huge, the pattern of the ROC contour and also public relations contour coincide; nevertheless, when there are lots of unfavorable examples, both vary substantially. The ROC impact still appears to be excellent, yet the public relations is the representation of the basic impact. From Fig. 7, we can end that BIR-CNN design shows the most effective efficiency.

The complication matrix worths are made up of the TP and also FN prices of the destructive code category. The abscissa in the complication matrix stands for the semantic network forecast category. The ordinate stands for truth category, and also the numbers on the angled signify the variety of right categories by the semantic network. The numbers outside the angled signify the variety of variances in between the forecasted and also real categories, suggesting the variety of wrong categories by the semantic network. Number 8 reveals the outcomes of complication matrix for malware 2-classifier (Fig. 8a), 4-classifier (Fig. 8b), and also 35-classifier (Fig. 8c) specifically on the examination information. From the complication matrix results, it can be ended that the BIR-CNN design executes well on the dataset. Based upon the complication matrix, we compute the Kappa coefficient, which is made use of to gauge the design category impact. The Kappa coefficient worths can be as high as 0.99 for malware discovery and also group classification, and also 0.95 for 35 category.

To additionally confirm the efficiency of BIR-CNN design in finding and also identifying Android malware on various other dataset, CCCS-CIC-AndMal-2020 dataset^{33,34}, Canadian Institute for Cybersecurity (CIC) task in partnership with Canadian Centre for Cyber Safety (CCCS), is performed. The dataset consists of 200 K benign and also 200 K malware examples completing to 400 K android applications with 14 noticeable malware groups and also 191 noteworthy malware households. Benign android applications (200 K) are gathered from Androzoo dataset to stabilize the significant dataset. The 14 malware groups are gathered consisting of Adware, Backdoor, Data Infector, No Group, Possibly Undesirable Applications (PUA), Ransomware, Riskware, Scareware, Trojan, Trojan-Banker, Trojan-Dropper, Trojan-SMS, Trojan-Spy and also Zero-day. Table 9 offers the information of 14 android malware groups in addition to variety of corresponding households and also examples in the dataset. The drawn out functions consist of memory, API, network, battery, logcat, and also procedure.

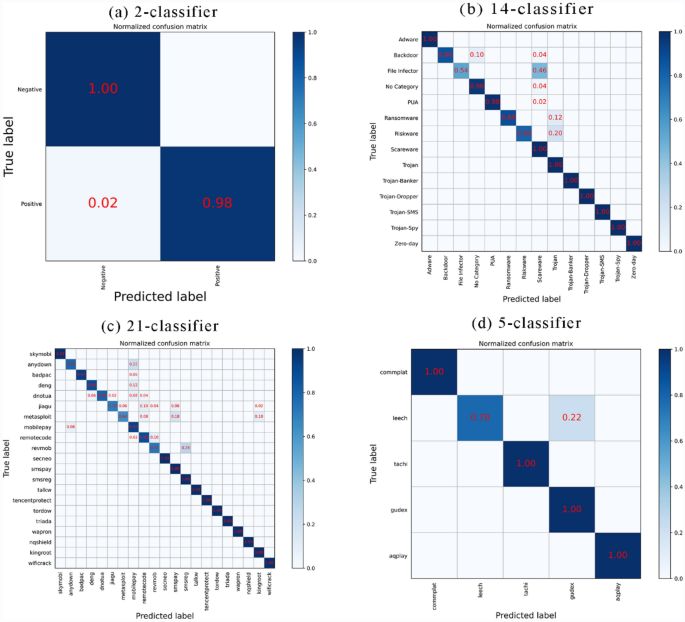

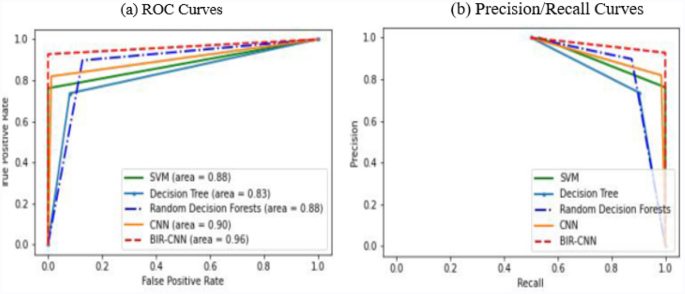

The speculative outcomes are displayed in the complying with Tables 10, 11 and also 12 and also Figs. 9, 10 and also 11. Tables 10, 11 and also 12 show the outcomes of 2-classifier, 14-classifier and also 191-classifier specifically of 5 artificial intelligence designs. Numbers 9, 10 aesthetically highlight the contrast outcomes of BIR-CNN design with various other designs specifically. Number 11 are complication matrix for 2-classifier, 14-classifier, 21-classifier (households) of Riskware group and also 5-classifier (households) of Data Infector group. The Riskware group has 21 households and also acquires one of the most examples in 191 households. The Data Infector group has 5 households and also acquires the least examples. From all the outcomes, the BIR-CNN design get the most effective outcomes consisting of precision, accuracy worth, recall, F1-score, AUC. Extra dramatically, the BIR-CNN design attains great efficiency in multi category.
